New Model

Model 1200 Plus

Our newest and most powerful model. A perfect solution for any applications that require the use of a precision flame. The model 1200 plus allows the use of the full range of tips, ranging from 15 - 25. The model 1200 plus leverages dry cell technology to achieve a more powerful flame.

4000h
Durability
1850°C
Max Temp
150ml
Powered By Water
15mm
Pass Thickness
2 Years
Guarantee Period
300 lt/h
Gas Production
1.20 kW
Electrical Usage
14 - 25
Torch Tips Range

Title Text

Lorem Ipsum is simply dummy text of the

Title Text

Lorem Ipsum is simply dummy text of the

* While the Aquaflame will produce a flame up to 3300°C, we do not recommend using it without MEK. MEK gives the most stable flame at a temperature of about 1850°C

Industry Recommended

Enquire Now

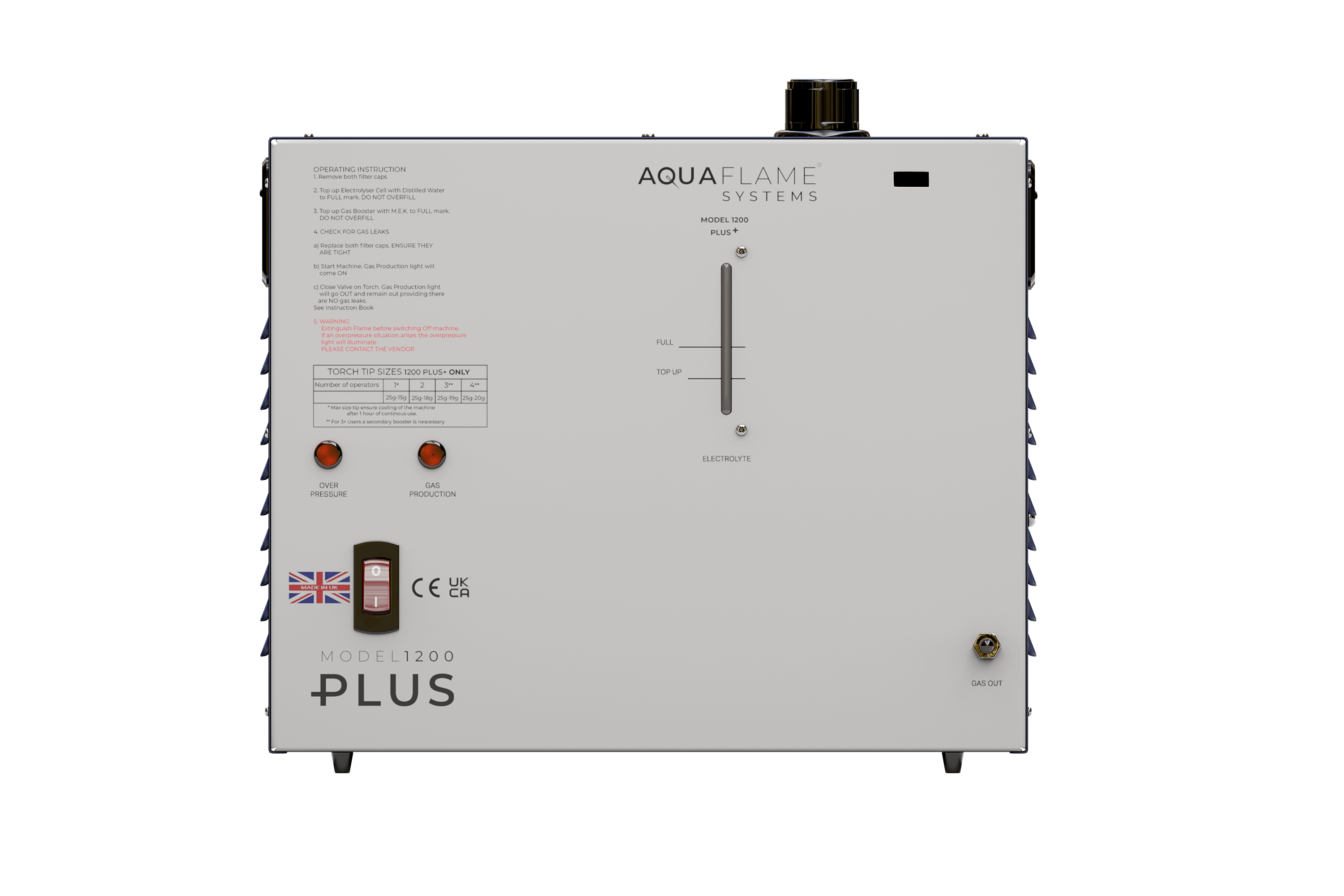

About the Model 1200 Plus

Our newest and most powerful model. A perfect solution for any applications that require the use of a precision flame. The model 1200 plus allows the use of the full range of tips, ranging from 15 - 25. The model 1200 plus leverages dry cell technology to achieve a more powerful flame.

Quad User

The model 1200 is capable of running as a 4 man operating system at a maximum tip size of 20 this allows more efficiency within the work environment and results in a more efficient manufacturing process. To facilitate multiple users please use the second man operating kits.

15mm

Thickness that can be polished in one pass

Flame polishing on acrylic up to 10mm in one pass. The soldering and repair of jewellery is also easy for the model 800.

15 – 25

Torch Tips Range

The model 800 supports a tip range from 18 - 24

Flame Size

Power Output & Flame Size Comparison

The model 500 will produce a consistent flame from 10mm to 120mm long.  Making this machine perfect for smaller scale jobs that do not require the larger scale flame. (Note, the table shows a model capacity based on a single user with the machine running at full capacity).

NB. the above table shows model capacity based on a single user, running at full capacity.
** Use of incorrect tips will void warranty

How Aquaflame Works

Aquaflame Systems provide solutions for micro soldering and acrylic flame polishing. Also known as an ‘HHO Generator’ (An oxyhydrogen torch/hydrogen torch). A oxy-gas torch burns hydrogen (the fuel) with oxygen (the oxidiser). The powerful gas-generating units produce a high-temperature flame of up to 1200-3300°C * by:

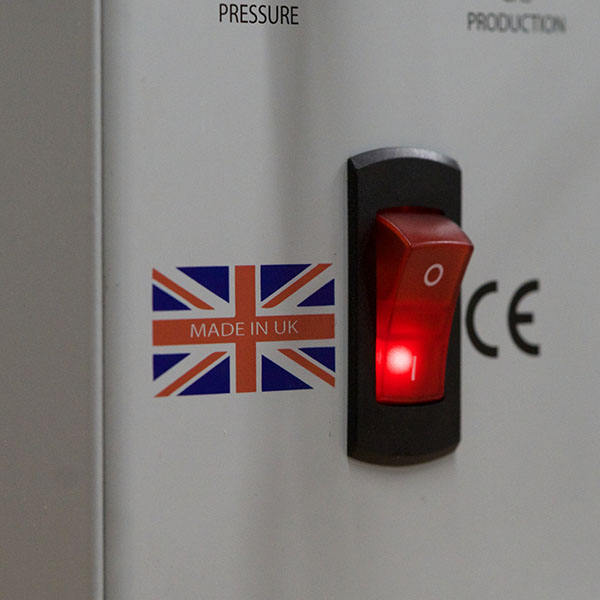

Red on and off switch on Aquaflame machine

Using a standard electrical supply, hydrogen and oxygen are produced by the electrolysis of distilled water.

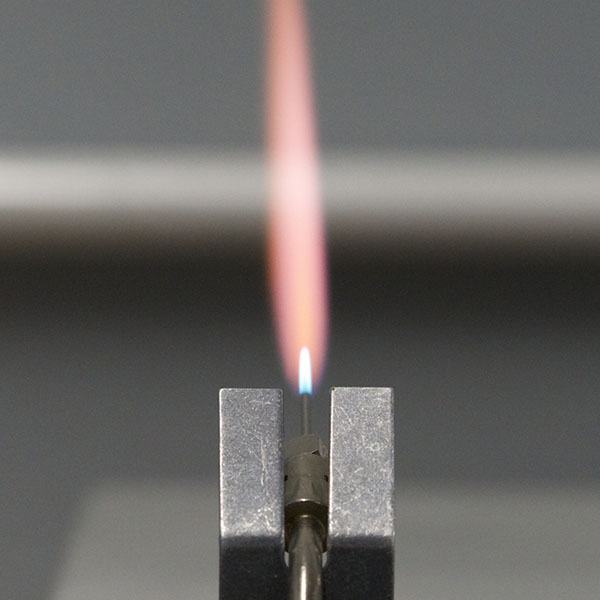

Flame torch tip in holder

Using a standard electrical supply, hydrogen and oxygen are produced by the electrolysis of distilled water.

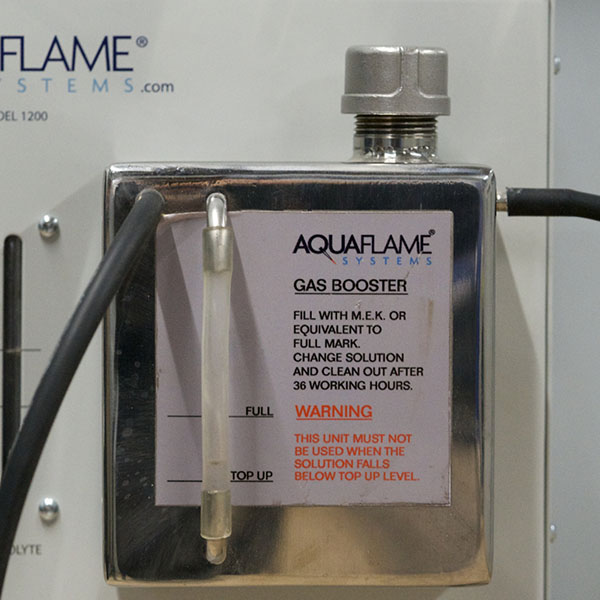

A gas booster being used on an Aquaflame machine

Using a standard electrical supply, hydrogen and oxygen are produced by the electrolysis of distilled water.

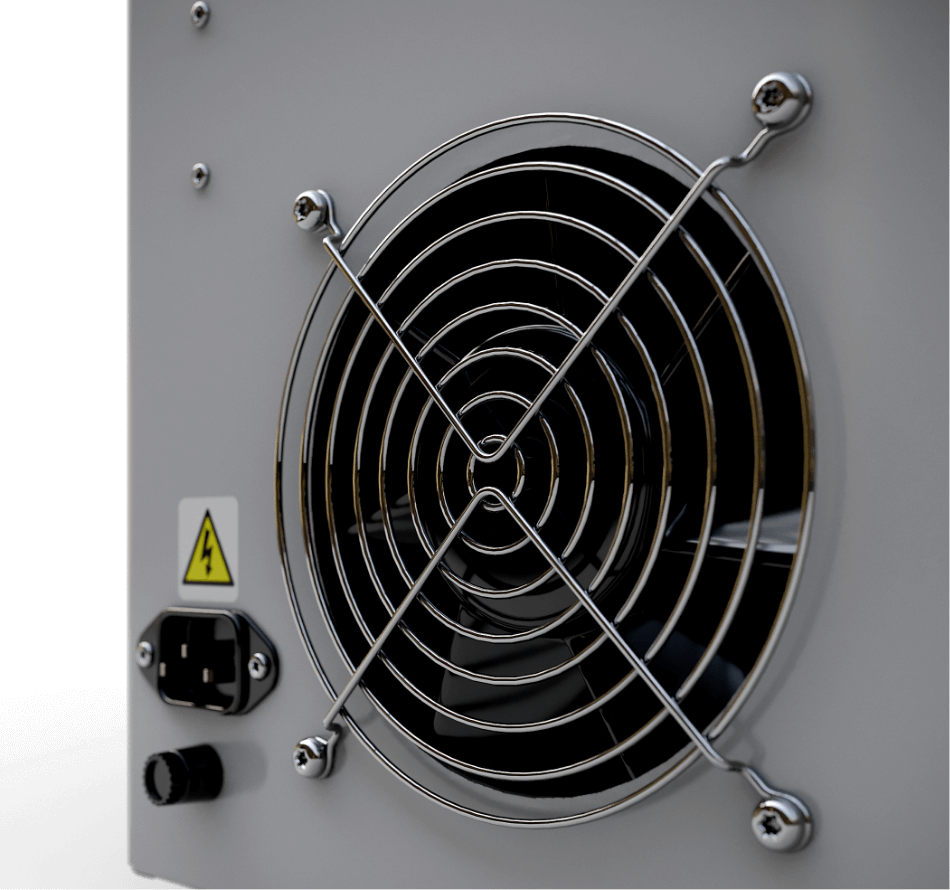

Cooling System

Smart Cooling

With powerful motors and high-reliability rates, our fans have been specifically chosen to optimise power and provide cooling for all critical components. Alongside being low maintenance, these high-speed blowershave a maximum speed of up to 2800rpm and are 344mm in size. Cool yourmachines in super heated situations with Aquaflame's systems.

Check out our range of Models >Compare Models

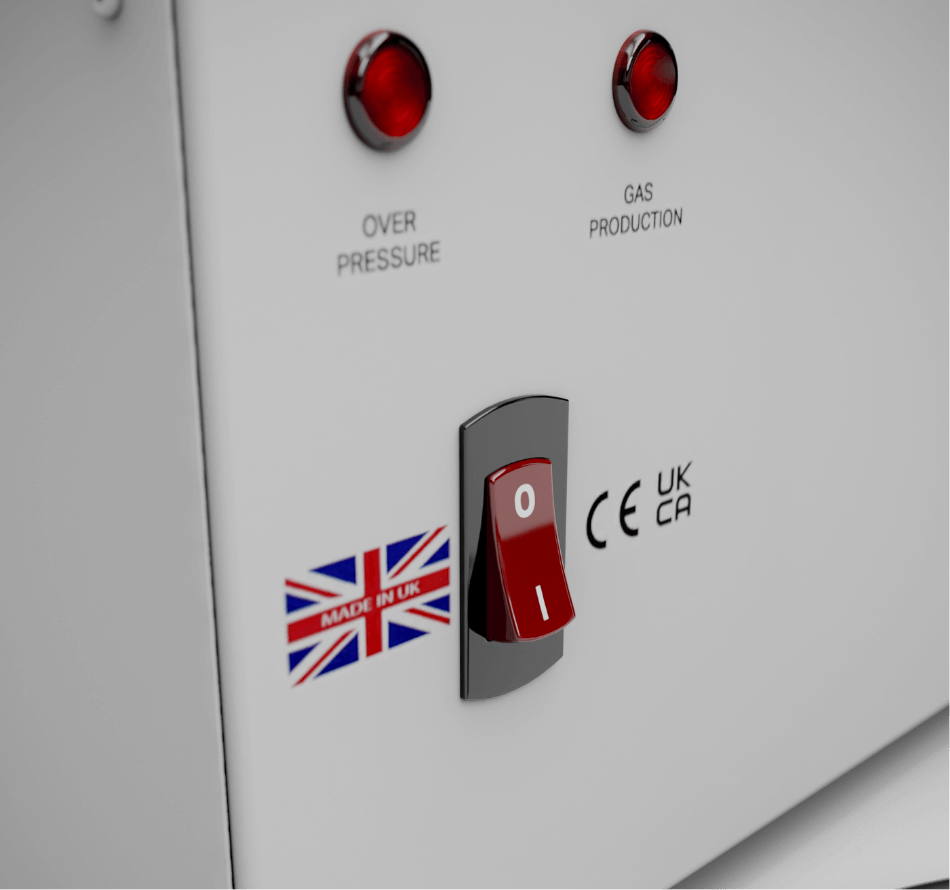

Quality

British Brand

Although we deliver products around the globe, there is no place quite likehome. Our products are designed and manufactured in our state-of-the-artfacility in Birmingham in the UK, something we love to shout about! Being aBritish brand and developing exceptional standards in quality has helped usto trade and create networks all over the world.

About AQF >About

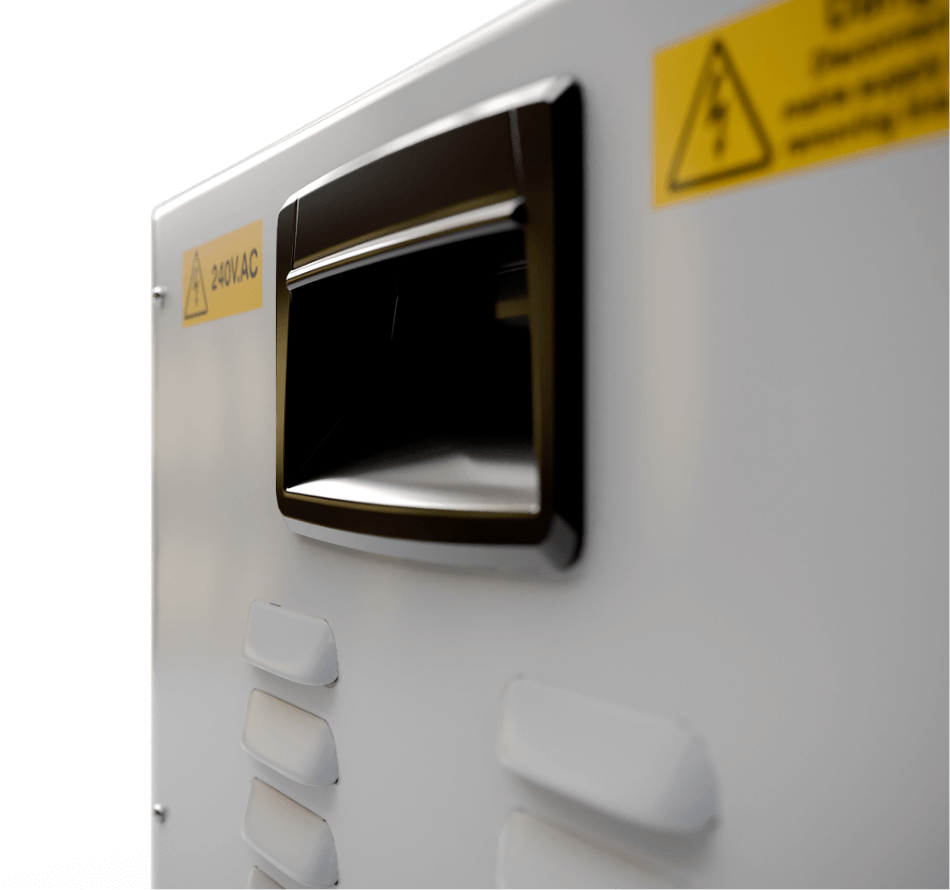

Ease of Use

Easily Portable

Due to its dimensions of 000x000 and weight of 000, model 000 is easy tomove around a workshop. Additionally, the handles of the machine make it portable. An added benefit that often gets overlooked is that they do not require any permanent positioning or gas tanks.

Check out our range of Models >Compare Models
Cooling System

Power Up

Reliable and low maintenance, our power cables are also energy-efficient.With the option of choosing between 240v or 110v power cables, you knowyour energy will be in safe mode. These cables are available on request. Just get in touch with the Aquaflame team.

Check out our range of Models >Compare Models
Accessories

Get Boosted

Able to withstand up to 3300 degrees of gas temperature, it's worth mentioning our boosters, as they also stabilise to 1850 degrees. Furthermore, they're hand-welded for a seamless quality of construction, which makes them resistant to chemicals. Enquire on our website today.

Check out our range of Accessories >Shop Now

Compare Models

Model 500

Users

Torch tips range

20 - 24

Torch tips bore size

0.60 - 0.31

Thickness that can be polished in one pass

5mm

Durabillity hours

4000h

Max temp

1850°C *

Water consumption (per day)

30ml

Electrical usage

0.50 kW

Gas production

75 lt/h

Guarantee period

2 Years

Learn More

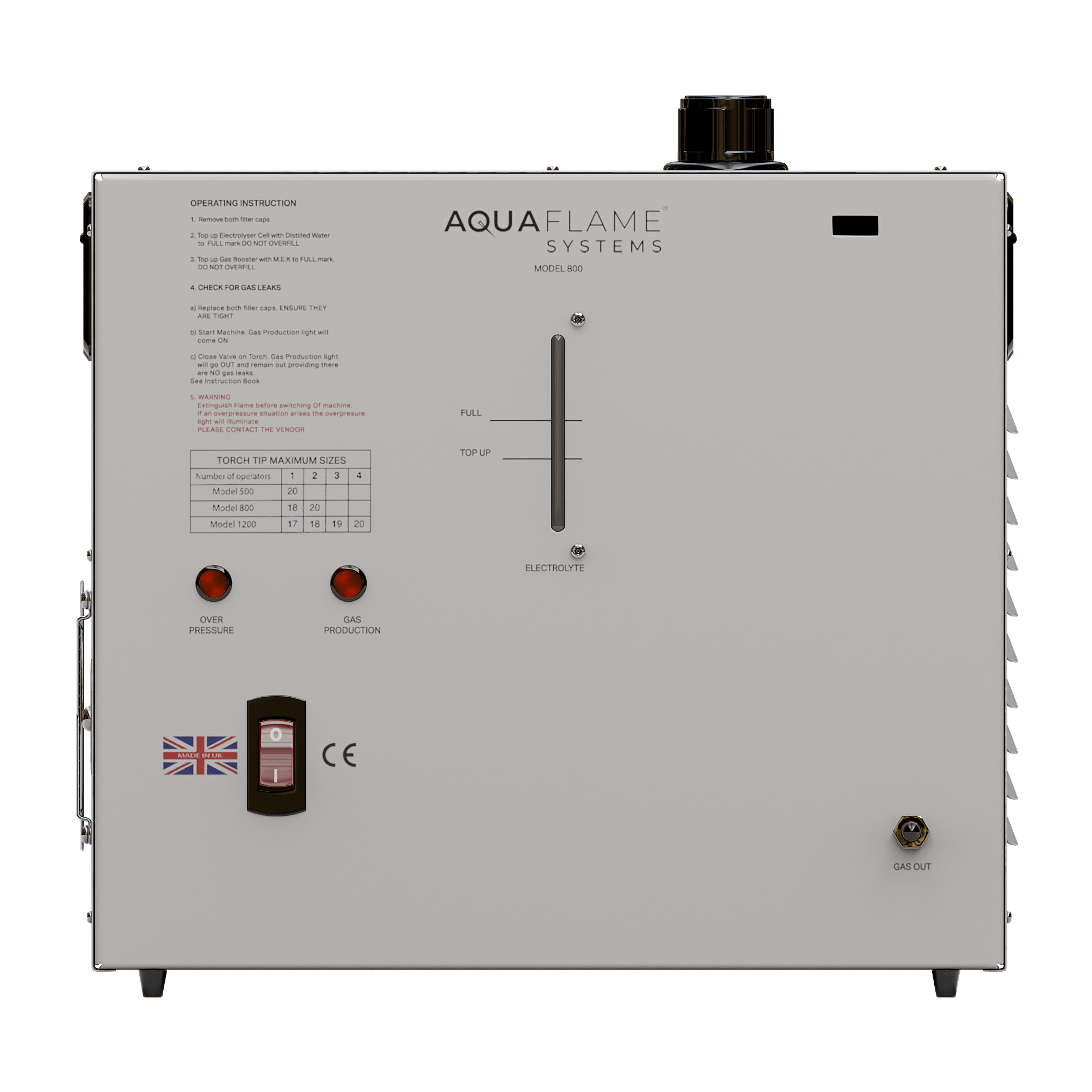

Model 800

Users

Torch tips range

18 - 24

Torch tips bore size

0.90 - 0.31

Thickness that can be polished in one pass

10mm

Durabillity hours

4000h

Max temp

1850°C *

Water consumption (per day)

50ml

Electrical usage

0.80 kW

Gas production

120 lt/h

Guarantee period

2 Years

Learn More

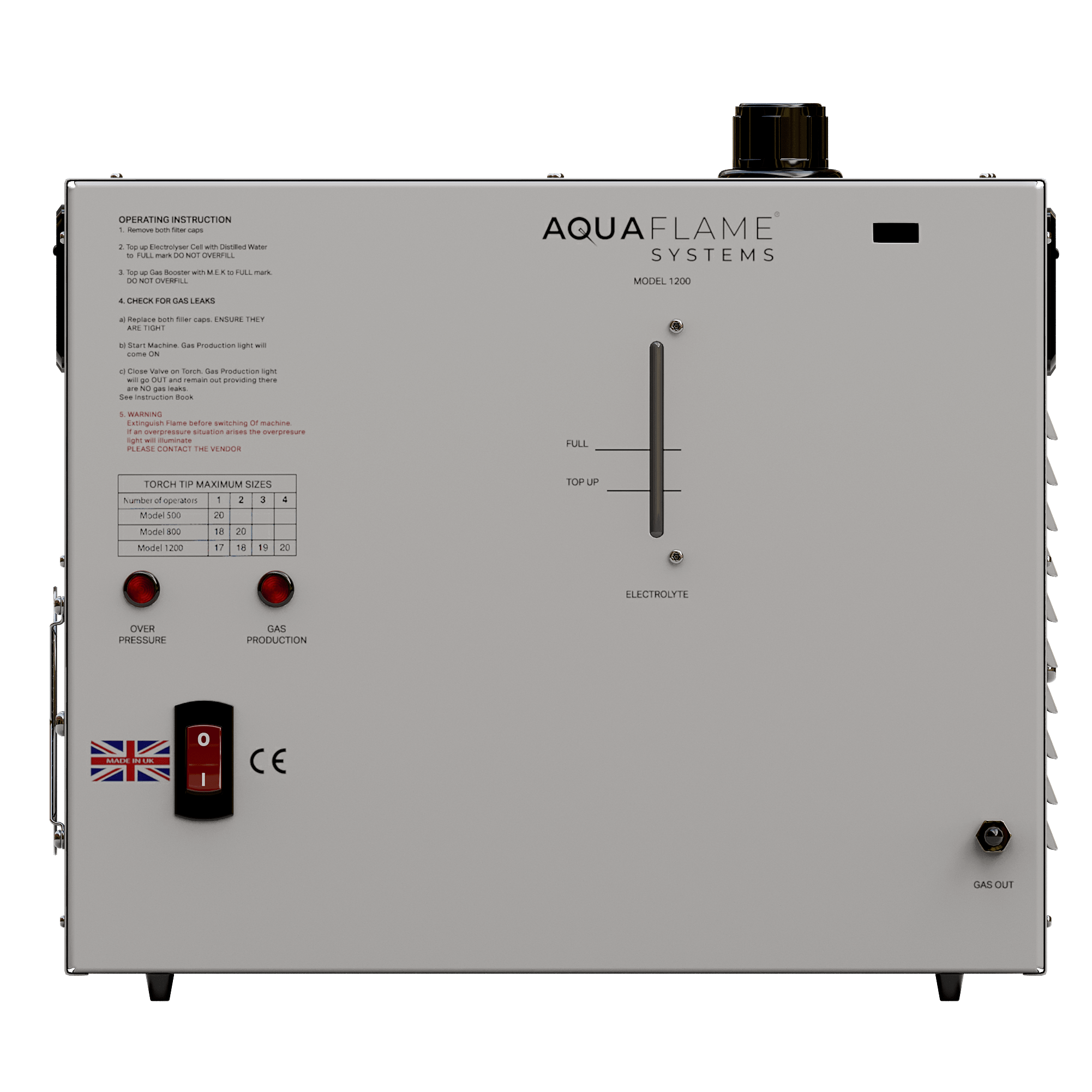

Model 1200

Users

Torch tips range

17 - 24

Torch tips bore size

1.00 - 0.31

Thickness that can be polished in one pass

15mm

Durabillity hours

4000h

Max temp

1850°C *

Water consumption (per day)

100ml

Electrical usage

1.20 kW

Gas production

240 lt/h

Guarantee period

2 Years

Learn More
New Model

Model 1200 PLUS

Users

Torch tips range

15 - 25

Torch tips bore size

1.00 - 0.31

Thickness that can be polished in one pass

15mm

Durabillity hours

4000h

Max temp

1850°C *

Water consumption (per day)

150ml

Electrical usage

1.20 kW

Gas production

300 lt/h

Guarantee period

2 Years

Learn More
* While the Aquaflame will produce a flame up to 3300°C, we do not recommend using it without MEK. MEK gives the most stable flame at a temperature of about 1850°C

Model 1200 Plus (new)

Model 1200
Model 500
Model 800

Model 1200 Plus Stats

Quad
User
Highest
Efficiency
Most
Power
Full
Flame Range
Heaviest
Weight
Largest
Form Factor
Saftey

No Pressurised Gas Cylinders

Aquaflame is completely safe because it produces gas on demand and there is no stored gas. In addition it is lightweight and portable – there is no heavy lifting as with gas bottles and no H&S issues to deal with internally apart from carrying out a risk assessment.

Enquire Now
Efficiency

Low capital cost, running cost.

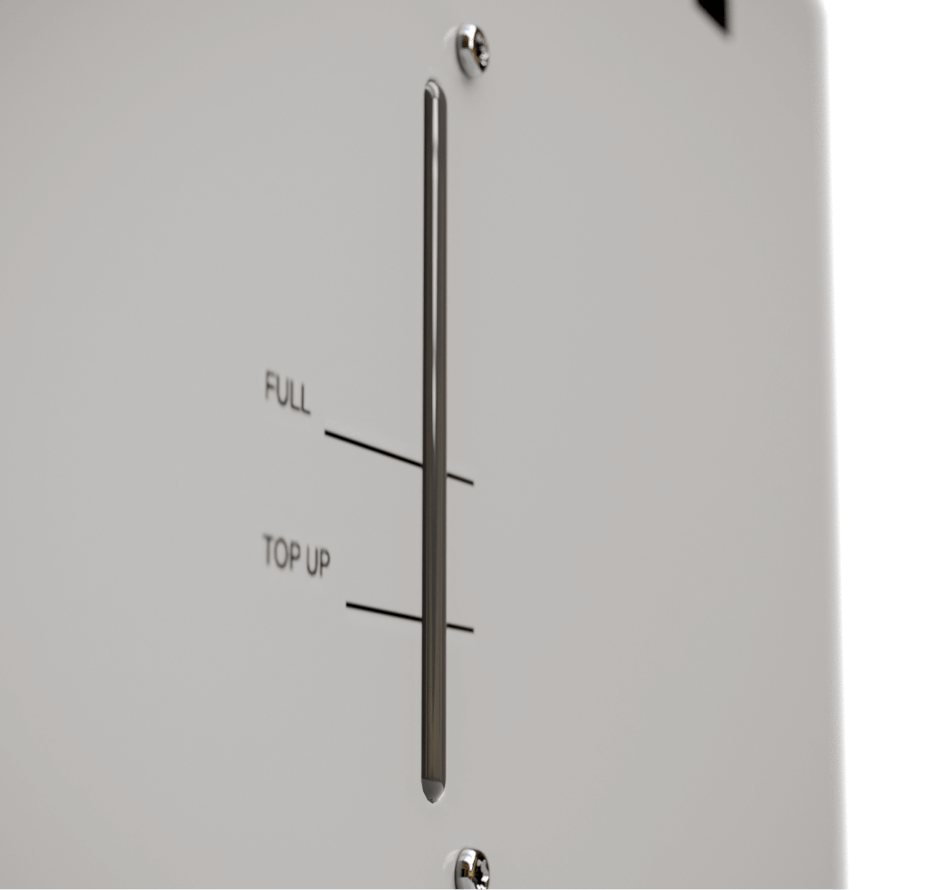

Once the machine is filled it only needs topping up from time to time with deionised water and methyl ethyl ketone (MEK). If you run the machine for 40 hours in a week it might use 20ml of MEK (end user cost £1.87). It is not necessary to re-fill the electrolyte between services – only top up with deionised water.

Enquire Now
Getting Started

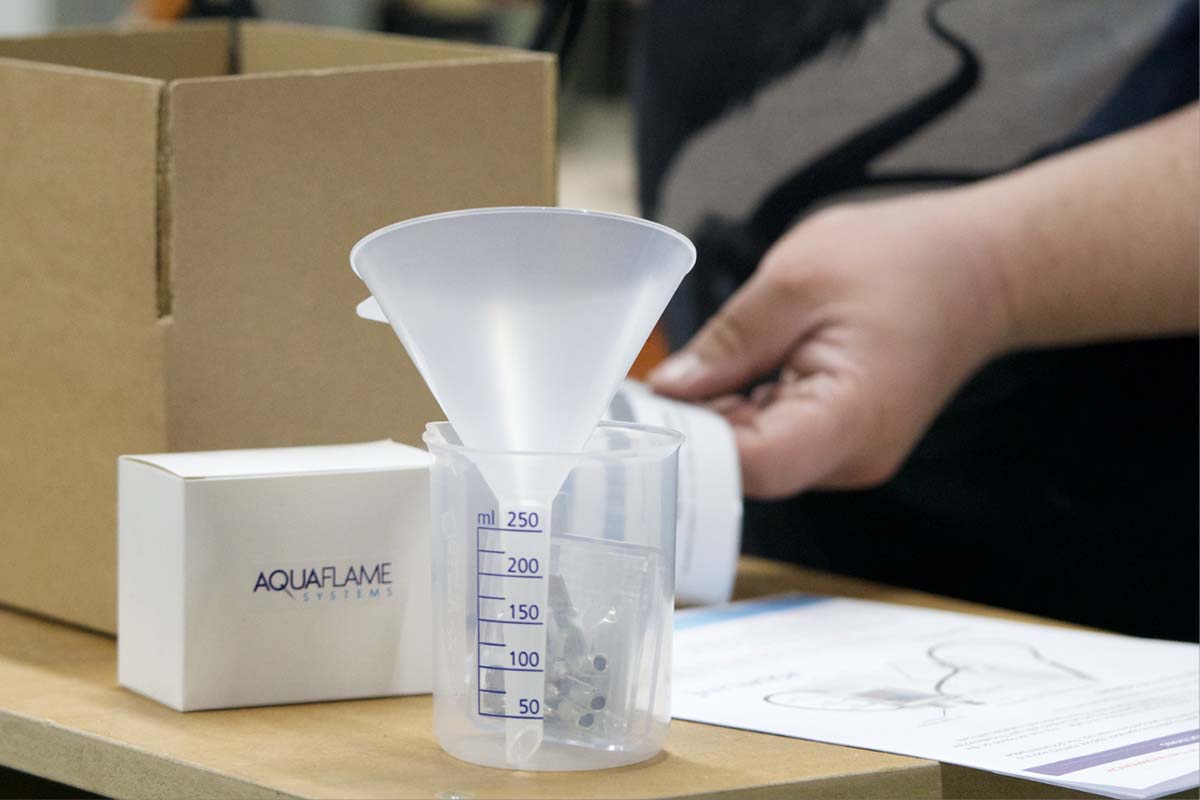

What's in the box?

  • The Machine (Model 500, 800, 1200 or 1200 plus)
  • Getting Started Manual
  • Starter Kit
    - Standard AQF Torch
    - Neoprene Tubing
    - Starter Tip set
    - Filling Beaker (250ml)
    - Filling Funnel
  • Aquaflame Booster
  • Starting Chemical KOH (UK only)
Get setup

Applications and solutions, lets solve your issue.

What can the Aquaflame machines be used for?

Aquaflame provides solutions for individual traders and small retailers through to larger manufacturers in the jewellery, dental and other technical manufacturing industries. Our smaller machines such as the 500 model are suited to single users. Whereas our larger machines such as the 1200 model are capable of having 2-4 users working simultaneously.

Jewellery Soldering

Used for soldering and melting all types of precious metals.

Jewellery Soldering

Investment Casting Wax

Used for for a number of jointing and cleaning up operations.

Investment Casting Wax

Flame polishing acrylic edges

Used for polishing straight, curved & internal edges and shapes.

Flame polishing acrylic edges

Solering Small Components

Due to the small and direct flame, AQF can be used for any micro soldering.

Solering Small Components

Medical Instruments

Used for soldering medical instruments and appliences.

Medical Instruments

Dental Soldering

Used in dental labs for the construction of dental appliances and also it's used for joining wires, bands springs, and dentures.

Dental Soldering

Soldering Optical Instruments

Soldering optical instruments used for joining wires and optical frames.

Soldering Optical Instruments

Soldering white metal

White metal has a very low melting point and therefore requires precision in terms of soldering so that other parts are not damaged. Aquaflame produces an extremely precise flame, especially with the no.24 tip allowing easy soldering of white metal parts.

Soldering white metal
